Remote Leak Sensor
A high-sensitivity piezoelectric leak sensor that continuously captures pipeline noise for remote monitoring
Continuous Monitoring
Captures subtle leak sounds in real time and sends the data to the AI monitoring platform
High-Precision Data Collection
Digitizes and records faint field sounds using a high-performance MCU and 16-bit codec
Reliable Connectivity
Supports LTE-M and GSM for stable transmission in diverse installation environments.
Product Features
Product Features
01
High-Sensitivity Sensing
Uses a magnetic mount and piezoelectric sensor to capture subtle leak sounds.
02
Remote Data Logging
Automatically transmits collected acoustic waveforms to the central server for analysis.
03
Data Backup and Storage
Built-in 16 GB MicroSD storage prevents data loss and maintains data integrity during communication outages.
04

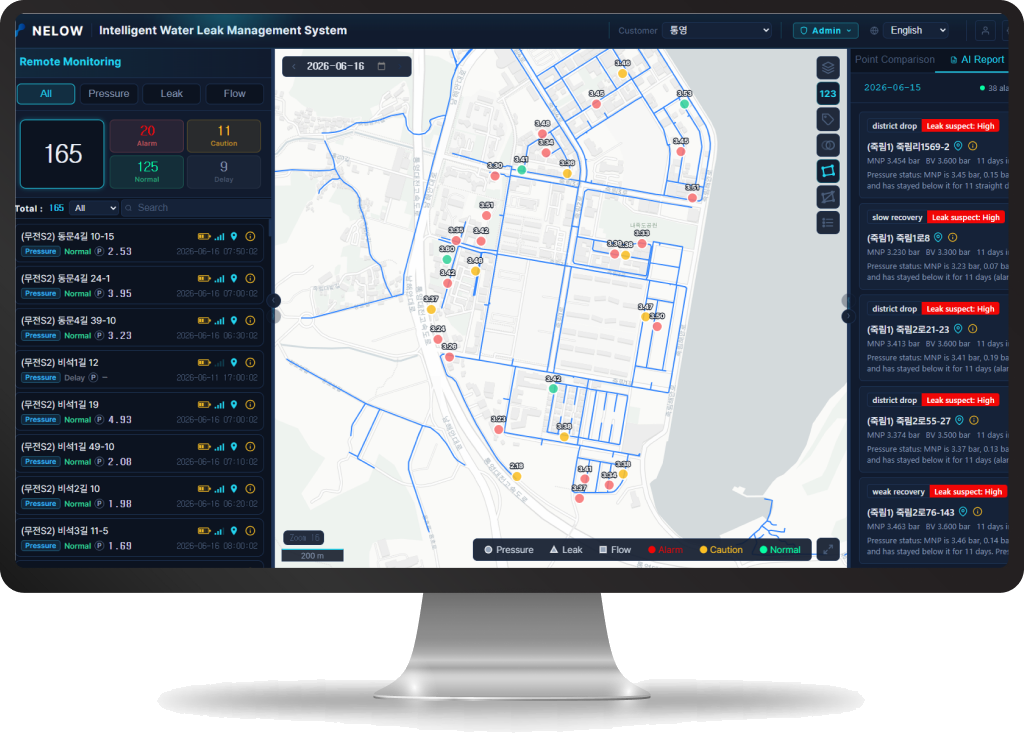

Intuitive Visualization
Displays suspected leak locations on web and mobile maps, together with waveform and spectrogram analysis.
Product Highlights
Key Benefits
Waterproof and Dustproof
Supports continuous operation inside valve chambers and manholes where flooding may occur.
Durable Design
Operates reliably across a wide temperature range of −20°C to 60°C.
Optimized for Confined Spaces
Its compact design enables easy installation in narrow spaces such as valve chambers.
Reliable Power Supply
A high-capacity lithium-ion battery enables long-term standalone operation without external power.
Precision Analysis Support
Integrates with an AI algorithm delivering over 95% detection reliability to minimize false alarms.
Product Spec
Product Specifications
Item
Specification
Dimensions :
110 × 100 × 80 mm
MCU :
ARM MCU
Codec :
16-bit
Memory :
16 GB microSD
Battery :
Lithium-ion
Communication :
Bluetooth 5.0, GSM, Cat-M1
Sensor :
Piezoelectric or Pressure Sensor
Operating Temperature :
−20°C to 60°C
IP Rating :
IP68
Included Components :
Battery Charger: 1 set / Ground Sensor Cables: 2 sets
Monitoring System
Leak Monitoring
