NELOW, The Intelligent Total Water Loss Management System

Intelligent(Smart) Water Leak Management System

NELOW

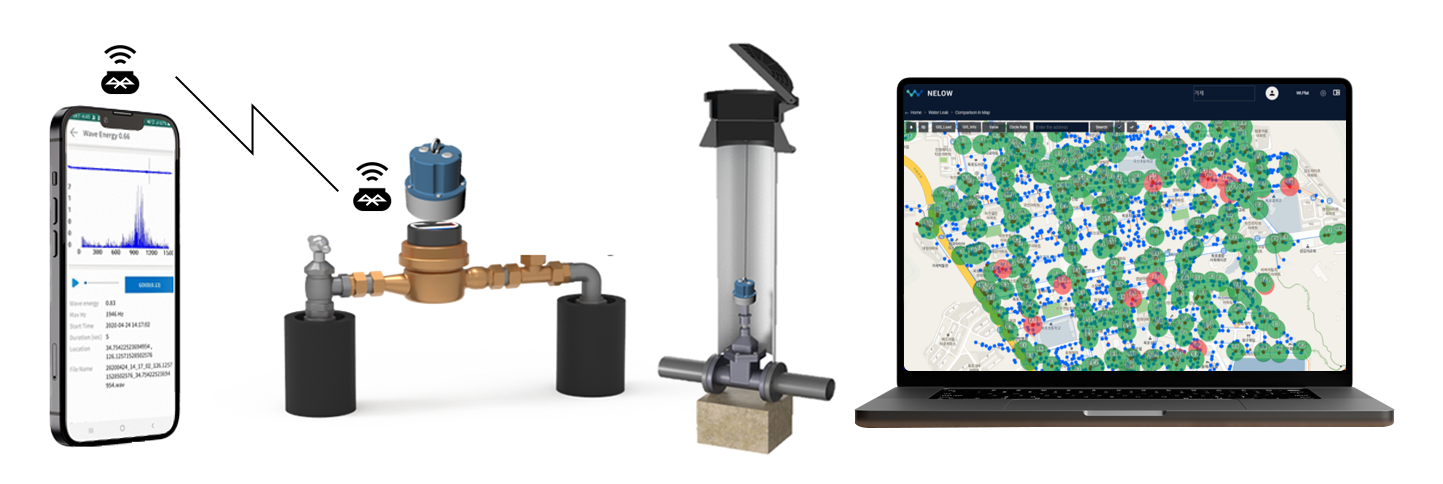

NELOW is a total water leak management system with AI, IoT, Cloud technology
NELOW-Enterprise consists of 4 types of device and mobile/web software
NELOW can be purchased or subscribed annually

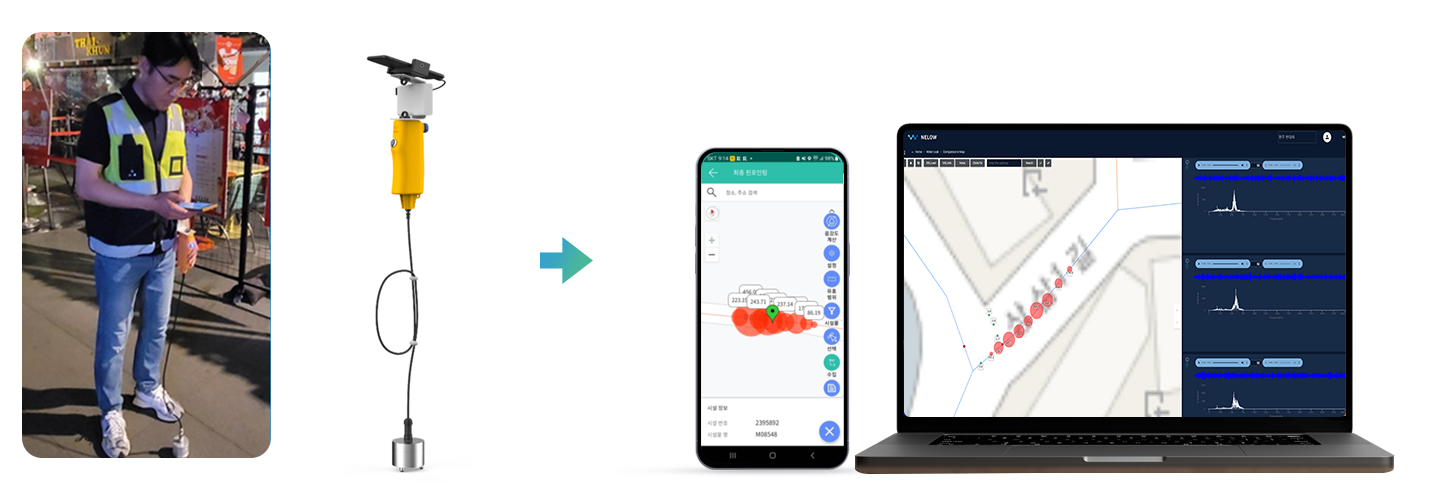

Sonic M1
Acoustic Mobile IoT Sensor for
Ground Leak Inspection
total-water-management-sand-filter
  • ARM MCU, 16 bit codec, Bluetooth 5.0
  • Rechargeable Lithium Polymer Battery
  • 16G Micro SD memory
  • 3 Days usage with 100% charged

Sonic GL
Acoustic Mobile IoT Sensor for
Water Meter & Valve Leak Inspection
ai-water-leak-detection
  • ARM MCU, 16 bit codec, Bluetooth 5.0
  • Rechargeable Lithium Polymer Battery
  • 16G Micro SD memory
  • 3 Days usage with 100% charged

Sonic T1
Sound Transmitter for Pipe Installation


sound-transmitter-for-pipe-installation
  • Sound Transmitter
  • Easy to install

Sonic M2
Remote Pressure Transmitter


ai-smart-water-management
  • ARM MCU, 16 bit codec
  • Bluetooth 5.0
  • Non-rechargeable High Capacity Battery
  • LTE, CAT M1, GSM Modem
  • IP 67, 16GMicro SD memory
  • 4 year battery is guaranteed

NELOW Mobile & Web
Software with total water leak management functions
nelow-total-water-leak-management-ai
Effective leak management requires a strategic approach across 3 categories
NELOW supports for all aspects of leak management within these categories
01
Leak Inspection
leak-inspection
02
Leak Detection
leak-detection
03
Leak Monitoring
leak-monitoring
01
Leak Inspection
water-leakleak-inspection2leak-inspection3
Valve
Water meter

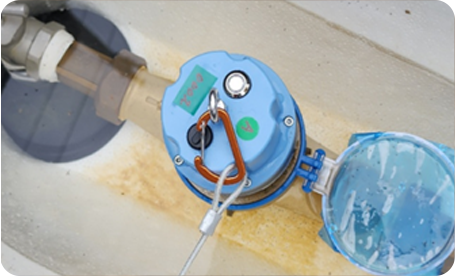

Sonic GL helps to inspect a water leak with low cost and high performance
02
Leak Detection
ai-water-leak-detection-2

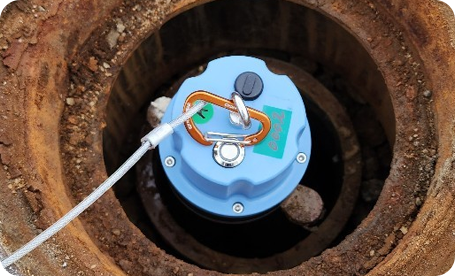

Sonic M2 helps to monitor water leak by analyzing maximum night pressure changes
03
Leak Monitoring
leak-monitoring-2
leak-monitoring-3leak-monitoring-4

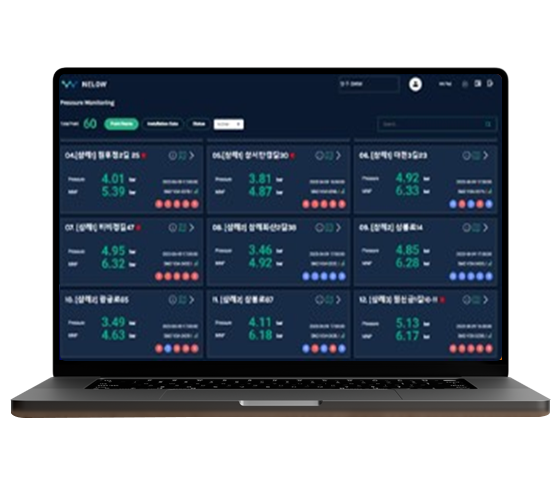

Pressure Monitoring
Maximum Night Pressure analysis
Sonic M2 helps to monitor water leak by analyzing maximum night pressure changes

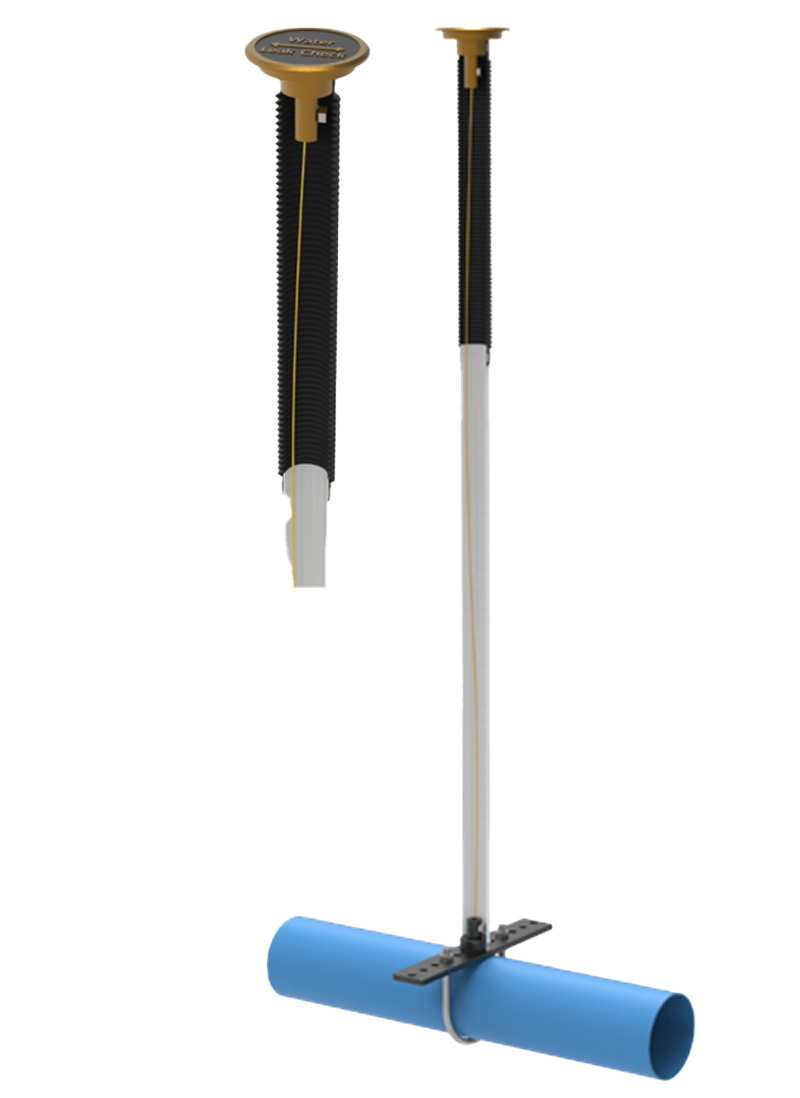

  Sonic T1

Sonic T1 can help to transmit a leak sound from a pipe It will be installed every 50m in plastic pipe and every 150m in steel pipe

sonic-t1
Small Town With a few leak inspection points
sonic-t1-pipe
  AI Model

AI Model helps to identify whether it is leak or not with minimum help from expert

ai-model-filefrequency-spectrogramcnn
Wav File

(5seconds, 200KB, Sampling rate : 22,050Hz)

Frequency Spectrogram
CNN

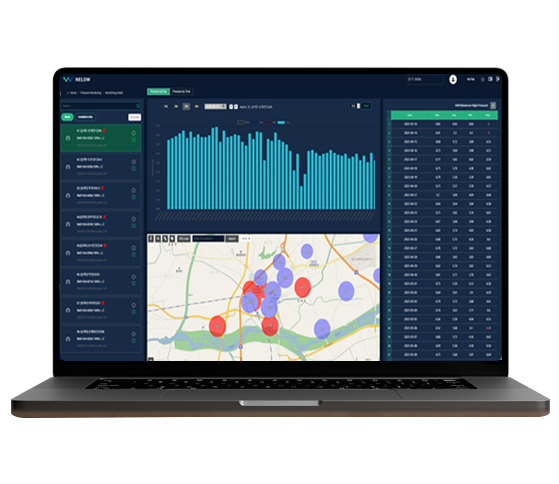

NELOW Mobile & Web Software

It supplies total system for water leak management

gis-master
GIS Master
leak-detection-5
Leak Detection
leak-inspection-5
Leak Inspection
leak-monitoring-5
Leak Monitoring
